Best Graphics Cards for a 650W PSU

The best graphics cards GPUs for 650W PSU builds are the GeForce RTX 5070, Radeon RX 9070, GeForce RTX 4070 Super, and Radeon RX 7800 XT for high-refresh 1440p gaming, with the RTX 4060 Ti 16GB, RX 7700 XT, and RTX 5060 Ti as more efficient mid-range options that leave the most headroom.

A quality 650W 80 Plus Gold unit from a reputable brand can power any of these cards safely when paired with a mainstream CPU (65-125W), provided you respect connector requirements and transient spikes. Cards that officially recommend 700W-750W, like the RTX 5070 Ti or RX 9070 XT, will run on a good 650W unit in some undervolted or power-limited systems, but they leave no safety margin and are not recommended for most buyers.

ASRock Intel Arc B570 Challenger 10GB OC & PRO-650G 650W 80+ Gold PSU | Smart 1440p Gaming Performance Bundle

Included for 'Best Graphics Cards for a 650W PSU' because the listing specifies Smart 1440p Gaming Performance Bundle, details this guide uses to compare options.

View on Amazon →

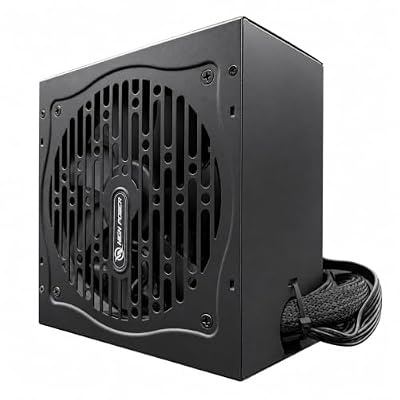

HIGH POWER 80 Plus Gold Certified PC Computer Power Supply - 650 Watts PSU, Continuous Power ATX 12V V2.3/EPS Active PFC with Whisper Quiet 120mm Fan, Reliable Performance and High Efficiency

Included for 'Best Graphics Cards for a 650W PSU' because the listing specifies 650 Watts PSU and Reliable Performance and High Efficiency, details this guide uses to compare options.

View on Amazon →

ASRock Challenger Value Bundle: Intel Arc B570 10GB OC GPU & 650W 80+ Gold ATX 3.1 PSU - Efficient 1080p/1440p Gaming Combo

Included for 'Best Graphics Cards for a 650W PSU' because the listing specifies Efficient 1080p/1440p Gaming Combo, details this guide uses to compare options.

View on Amazon →

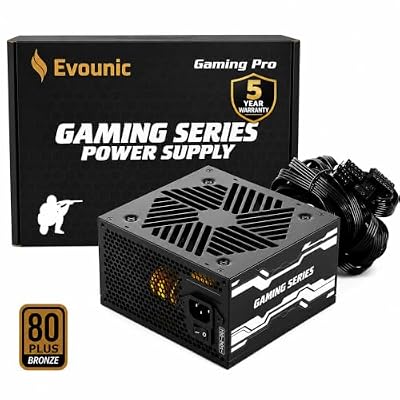

Evounic Power Supply 650W，ATX PSU，80 Plus Bronze Certified, 5 Year Warranty

Included for 'Best Graphics Cards for a 650W PSU' because the listing specifies 5 Year Warranty, details this guide uses to compare options.

View on Amazon →

How to Know If a GPU Is Really Safe on 650W

Manufacturer PSU recommendations are not just about wattage. They assume a high-end CPU, several drives and fans, and worst-case transient power spikes that last milliseconds but can trip an undersized or older PSU’s over-current protection. Use this quick power budget check before you buy:

Worked Calculation: Total System Headroom

Take your components at peak gaming load, not idle, and keep total continuous draw under 80% of your PSU’s rated capacity for efficiency and spike headroom.

Example build with RTX 5070:

• CPU (e.g., Ryzen 7 7700 or Core i5-14400): 90W peak gaming
• GPU (RTX 5070 TGP): 250W continuous, ~320W transient spike
• Motherboard + RAM + NVMe SSD + fans + peripherals: ~60-75W
• Total continuous gaming load: ~400-415W
• Transient peak (10ms): ~470-485W
• Load on 650W PSU: 62-64% continuous, 72-75% transient – well within spec

Same build with RX 7800 XT:

• GPU TBP: 263W continuous, ~360W transient spike (AMD RDNA 3 cards have higher transient excursions)
• Total continuous: ~413-428W (65% of 650W)
• Transient peak: ~510-525W (78-80% of 650W) – still safe on a modern ATX 3.0/3.1 650W unit with native PCIe 5.0 support, but tight on an older ATX 2.4 group-regulated unit

If your CPU is a 170W+ part like a Core i7-14700K or Ryzen 9 7900X running uncapped, add 50-80W to these totals and you should step down to a 220W-class GPU or upgrade the PSU.

Best Graphics Cards for 650W PSU Ranked by Gaming Performance

Ranked from fastest to most efficient at 1440p. All cards below are real 2026-market GPUs and fit within a 650W recommendation or well below it.

* AMD’s 750W recommendation for RX 7700 XT / 7800 XT assumes a worst-case system with a high-TDP CPU. A modern single-rail 650W Gold ATX 3.0/3.1 PSU with 54A+ on the 12V rail and native PCIe connectors handles either card with a 65-120W CPU, but you should not overclock and you need two separate 8-pin cables, not a daisy-chain.

1. GeForce RTX 5070 – Fastest Official 650W Option

The RTX 5070 is the performance ceiling for a 650W PSU by design. NVIDIA rates it at 250W TGP with a 650W PSU recommendation, including 30-40W of transient headroom. In traditional rasterization and ray tracing at 1440p, it leads the pack for this power class and outperforms the RTX 4070 Super by roughly 15-20% while staying within the same power envelope. It requires a 16-pin 12V-2×6 connector, but most models include a dual 8-pin to 16-pin adapter. This is the correct pick if you want the highest frame rates without changing your PSU, and you have a case with at least 300mm GPU clearance and good airflow.

2. Radeon RX 9070 – Most Efficient High-End Pick

The RX 9070 is AMD’s 220W RDNA 4 card built specifically for 650W systems. It uses two standard 8-pin connectors, so it avoids adapter concerns, and its transient behavior is more controlled than last-gen RDNA 3. It trades blows with the RTX 5070 in rasterized games at 1440p and offers 16GB VRAM, which helps in texture-heavy titles. It is ideal if you prefer standard connectors and want the lowest power draw in the top tier.

3. GeForce RTX 4070 Super – Proven 650W Workhorse

At 220W, the RTX 4070 Super remains one of the best-balanced 650W cards. It delivers 1440p 120Hz+ performance in most AAA titles with DLSS 3 Frame Generation, draws less than RX 7700 XT/7800 XT under load, and has modest transients. Prices in the general market range sit in the upper mid-range, typically lower than RTX 5070 at retail. Choose it if RTX 5070 availability is limited or you find it in a lower price bracket.

4. Radeon RX 7800 XT – 16GB Value for 1440p Ultra

The 7800 XT is faster than the RX 7700 XT and RTX 4060 Ti by a clear margin and gives you 16GB VRAM on a 256-bit bus, which benefits 1440p ultra textures and some productivity workloads. The catch is its official 750W recommendation and larger transient spikes. On a quality 650W ATX 3.0/3.1 unit with a 65-125W CPU and two dedicated PCIe cables, it runs reliably. On an older 650W ATX 2.4 unit or with a 170W CPU, pick the RX 9070 or RTX 4070 Super instead.

5. Radeon RX 7700 XT and RTX 5060 Ti / RTX 4060 Ti – Maximum Headroom Picks

These three cards are for builders who prioritize stability, thermals, or small form factor. The RX 7700 XT at 245W still plays most games at 1440p high/ultra above 90 fps but is easier on transients than the 7800 XT. The RTX 5060 Ti 16GB at 180W and RTX 4060 Ti 16GB at 165W leave more than 35% unused capacity on a 650W PSU, run cooler and quieter, need only one power connector, and fit compact dual-fan designs under 230mm. They are the best choices for prebuilt systems with non-premium 650W PSUs, or if your PSU is more than 5 years old.

Decision Matrix: Which Card Fits Your Situation

Connector and PSU Age Checks That Matter More Than Wattage

A 650W number alone does not guarantee compatibility. Check these three things:

• ATX version and rail design: ATX 3.0/3.1 units are tested for 200% transient excursions and include a native 12VHPWR / 12V-2×6 port. ATX 2.4 units are not, so an RX 7800 XT can trip protection even if the wattage math looks fine. If your PSU label shows multiple 12V rails at 20-25A each, or it lacks a dedicated PCIe 5.0 cable, stay with 180-220W cards.
• Cables: Never use a single daisy-chained PCIe cable with two 8-pin plugs for a 220W+ GPU. Use two separate 8-pin cables from the PSU to the GPU. For 16-pin cards, seat the 12VHPWR / 12V-2×6 connector fully until it clicks, with no side tension or sharp bends within 35mm of the plug. A loose 16-pin connection increases resistance and heat.
• PSU condition: Capacitors age. A 650W unit that is 7-8 years old or has run continuously at high load will not hold its rated transient response. If you are reusing an old unit, limit yourself to 165-180W GPUs unless you can verify it is a Tier A modern platform.

Also verify physical fit: RTX 5070 and RX 7800 XT models are typically 300-330mm long and 2.5-3.5 slots thick, and need a case that supports at least 320mm clearance and 3-fan airflow. RTX 5060 Ti and RTX 4060 Ti dual-fan models are often 200-240mm and fit most micro-ATX cases.

What to Avoid on 650W

Cards that require a 750W or higher PSU by the manufacturer should be considered incompatible for a buying guide, even if forums report success. This includes the RTX 5070 Ti (300W, 750W recommended), RX 9070 XT (304W, 750W recommended), RTX 5080 (360W, 850W recommended), and RX 7900 XT/XTX. They will push a 650W unit beyond 85% load during transients, cause shutdowns in demanding scenes, and void the thermal and over-current safety margin you need for long-term reliability.

If you already own one of those higher-tier cards and a 650W PSU, power-limiting the GPU to 75-80% and undervolting can reduce draw by 30-50W, but that is a workaround, not a recommendation for a new purchase.

FAQ

Can I run an RTX 5070 or RX 9070 on any 650W PSU?

On a modern 650W 80 Plus Gold or better unit with a single 12V rail rated at 54A or higher and native PCIe 5.0 support, yes. On an older budget or group-regulated 650W unit, or a unit with a daisy-chained cable, you should choose an RTX 5060 Ti / RTX 4060 Ti class card or upgrade the PSU first.

Do I need an ATX 3.0 PSU for a 16-pin GPU on 650W?

No, but it is strongly preferred. ATX 3.0/3.1 guarantees transient handling and provides a native 16-pin cable. With an ATX 2.4 PSU, you can use the included adapter with two or three 8-pin inputs, but you must use separate cables for each 8-pin input and ensure the adapter is fully seated.

Will a 650W PSU limit GPU performance?

No, if the GPU is within spec. A PSU does not throttle a GPU; it either delivers clean power or shuts down under protection. Performance loss only happens if you manually power-limit the card to stay safe on an undersized PSU.

How much does CPU choice affect my GPU headroom?

Significantly. A 65W Ryzen 5 7600 vs. a 170W Core i7-14700K can be a 60-80W difference in gaming load. With a high-TDP CPU overclocked, even a 250W GPU can exceed comfortable headroom on 650W. Keep the CPU at stock power limits or choose a 220W-or-lower GPU if you run a flagship CPU.
